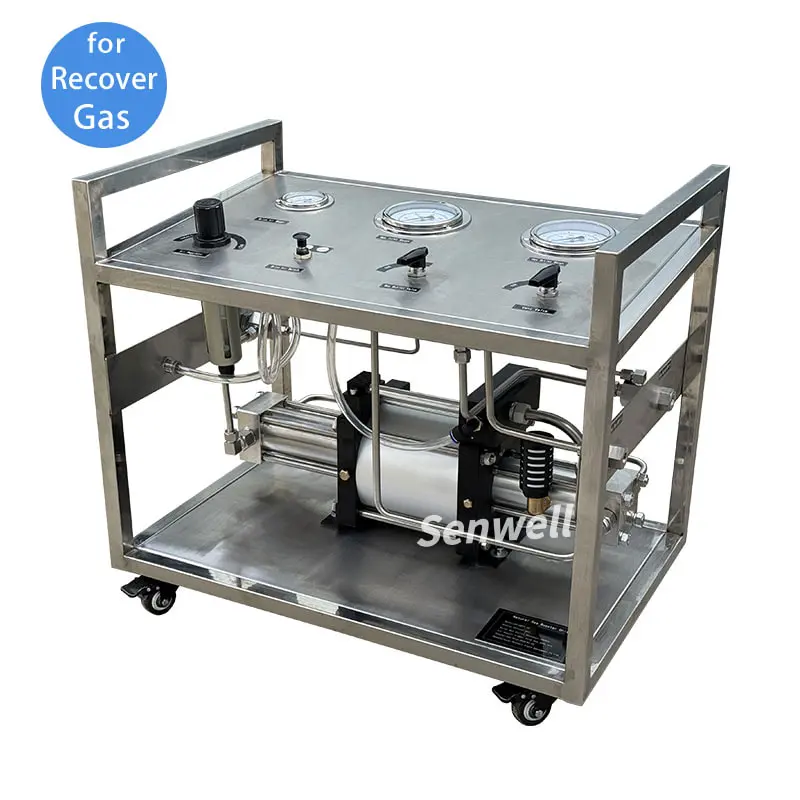

H2 SF6 Helium gas recovery system is a gas recovery machine that can complete recycling gas, compressing gas and refilling gas into cylinder in one go. Powered by compressed air, gas recovery machine has no electric spark and flame risk, thus explosion proof. Therefore, it can safely recycle various gases in hazardous areas, whether in gaseous state, gas-liquid mixture or vapor state. The gas recovery machine is a low pressure gas recovery unit, which can achieve low-pressure recovery gas and high-pressure refilling gas. Even if the gauge pressure of your gas is zero, the machine can successfully recover the gas and refill it into a cylinder for your later use. Beyond that, it can also serve a gas sampling equipment.
Gas recycle machine can efficiently recycle diverse gases such as helium, hydrogen, argon, ethane, H2S, SF6 and more.
1. Serve as a SF6 recovery unit to recycle SF6.
2. Act as a helium recovery system to recycle helium from balloons.
3. Serve as a gas sampling system to sample gas.
How to recycle gas? There is a gas recovery pump built in the gas recovery machine, which is essentially a two-stage gas booster pump. Before recycling gas, you need to set a gas refilling pressure by rotating the air regulator while reading the pressure gauge on the panel. Then the gas recovery pump will suction low-pressure residual gas from your source tank or pipeline, then compress the gas and refill the gas into a cylinder, thereby successfully recovering the gas and converting it into bottled gas for your later use.
Gas recovery pump is a two-stage gas booster that can boost gas from very low pressure to high pressure. That is, it can suction gas as low as 0.1bar and output higher pressure gas through compressing it. Thereby, gas recovery pump can effectively recycle various gases and vapors.
The helium recovery system is a low-cost but effective helium recovery unit. It can help you recycle the helium vapor that normally evaporates in cryogenic equipment and the helium gas lost when using helium, and convert it into bottled helium gas after compressing it for your reuse.
Yes. Even if the residual gas in your cylinder or pipeline is 0bar(gauge pressure), the gas recovery machine can successfully recover your gas.
For LPG, butane, refrigerant and other special medium, we have special gas recovery device for you to choose, please contact us for brochures.
Fire suppression gas contains IG-541, IG-55, Co2, FM200 (HFC-227) and NOVEC 1230 (FK-5112). However, only FM200 and NOVEC 1230 are relatively expensive and have recycling value. For this reason, we supply Clean Agent NOVEC FM200 Recovery Machine for your choice.
Request Brochure or Quote
