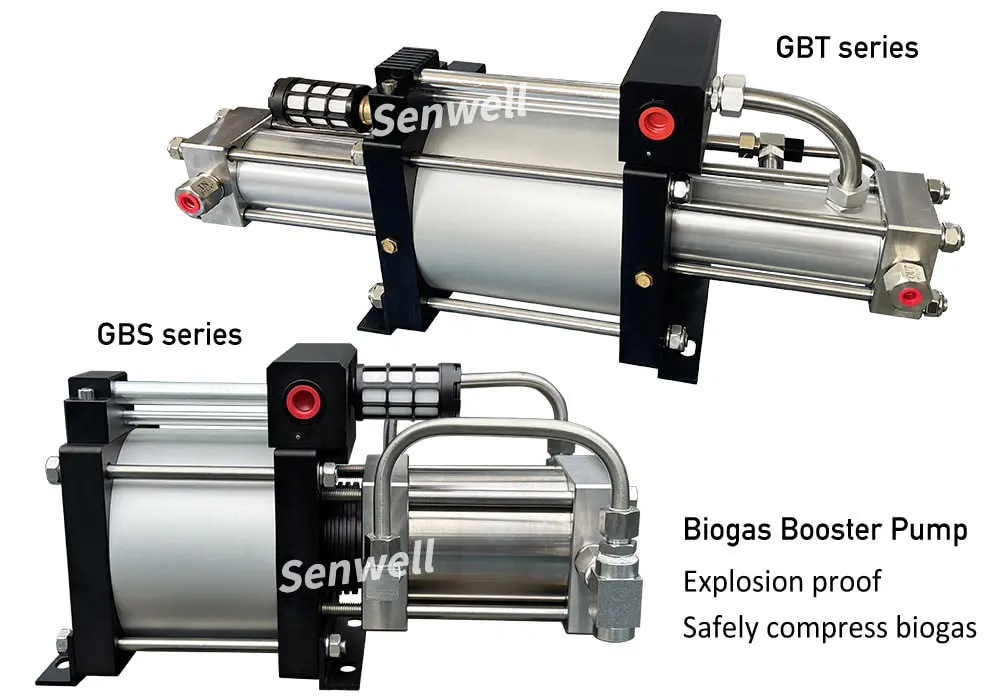

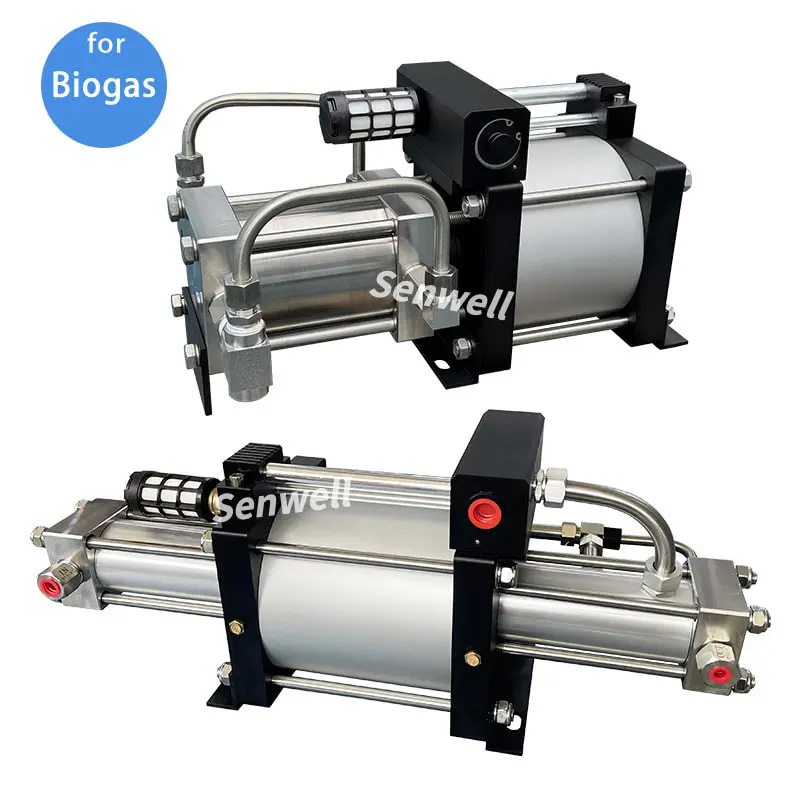

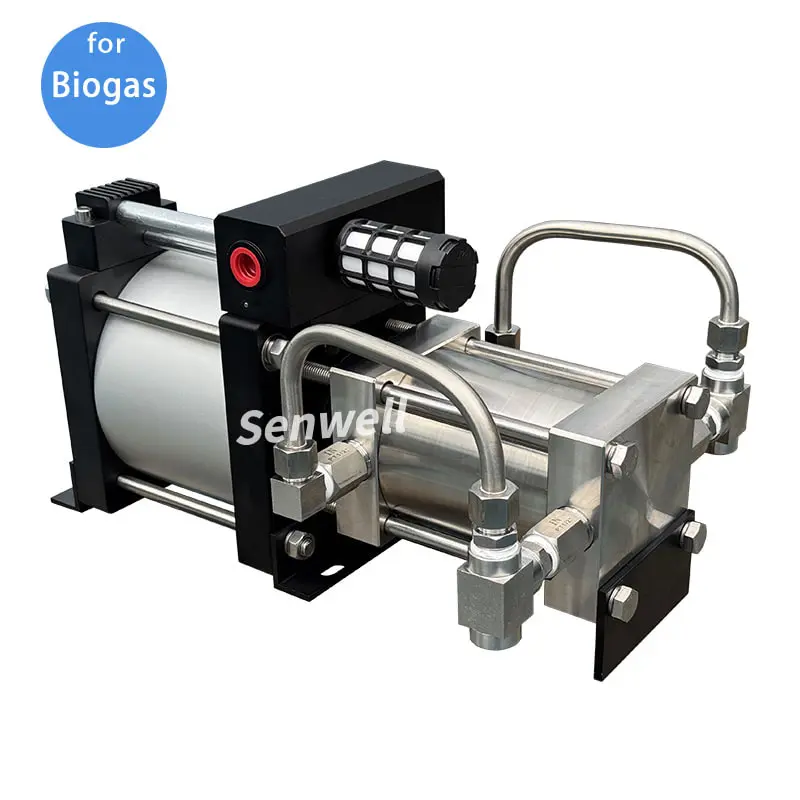

Biogas booster pump, also known as methane booster, can compete compressing biogas, transferring or filling biogas in one go. To be specific, the biogas booster can safely compress biogas to 250bar maximum, and then fill biogas into cylinders for storage or transportation. The biogas booster can also boost the pressure of biogas digester, biogas balloon or biogas pipeline to solve the problem of biogas pressure insufficient , thus making the biogas burn more completely. The biogas booster uses compressed air as driving power, and does not require electricity, thereby avoiding the risk of biogas being ignited by electric sparks. To meet your dual demands on biogas pressure and flow, we supply multiple models of biogas booster pumps for your choice.

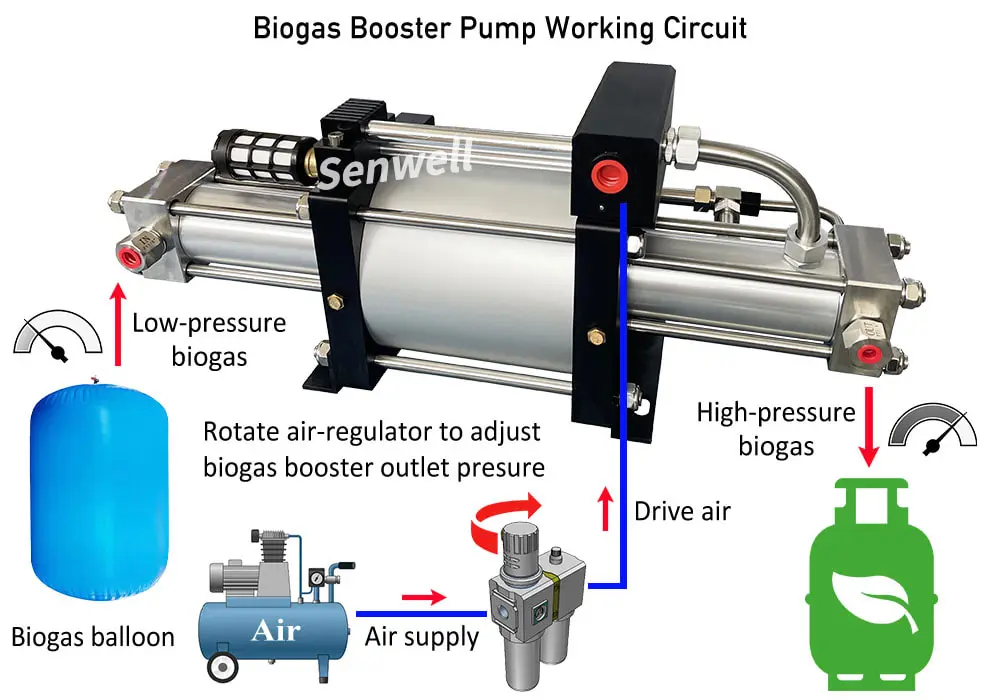

The biogas produced by the biogas digester will be collected, purified and then stored in a biogas ball, the pressure of which is usually only 0.4bar to 1bar. If you want to store low-pressure biogas in LPG tanks or CNG tanks, you need to compress biogas to 21bar or 200bar respectively. The biogas booster can suction biogas and compress it into high-pressure biogas, even if the gauge pressure of your source biogas is zero. You only need to set a biogas filling pressure by adjusting the air regulator, then the biogas booster pump will compress and fill biogas into your cylinder. And it will automatically stop when reaching your preset pressure.

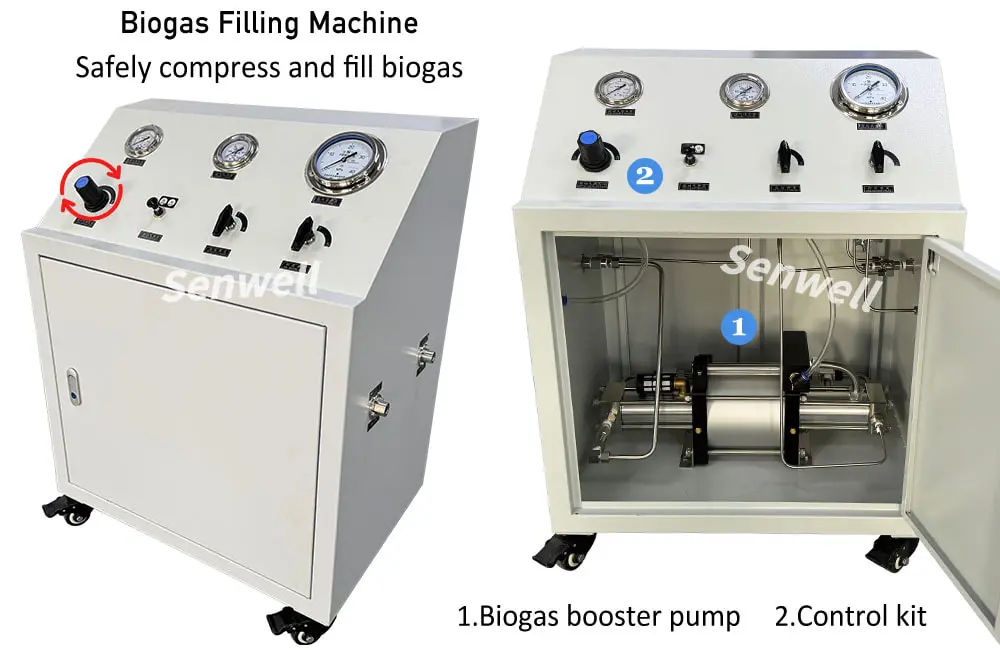

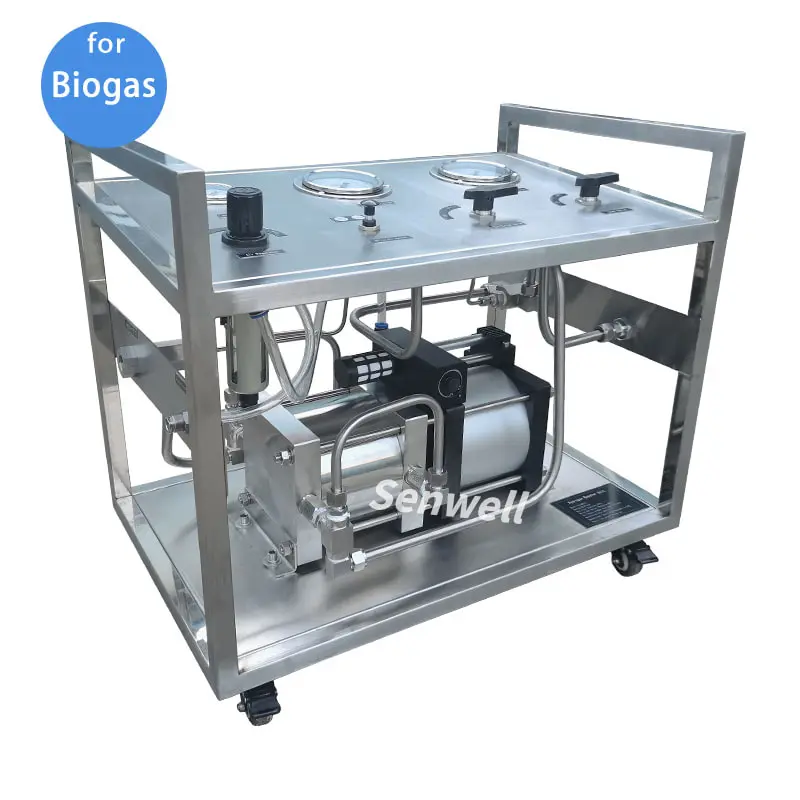

To facilitate your recovering and filling biogas, we built the biogas filling machine. It consists of biogas booster pump and control kit, thus easy to operate and move. You only need to set a filling pressure by adjusting the air-regulator, and the bio gas filling machine will complete compressing biogas and filling biogas in one go. And it will automatically stop filling when reaching your preset pressure.

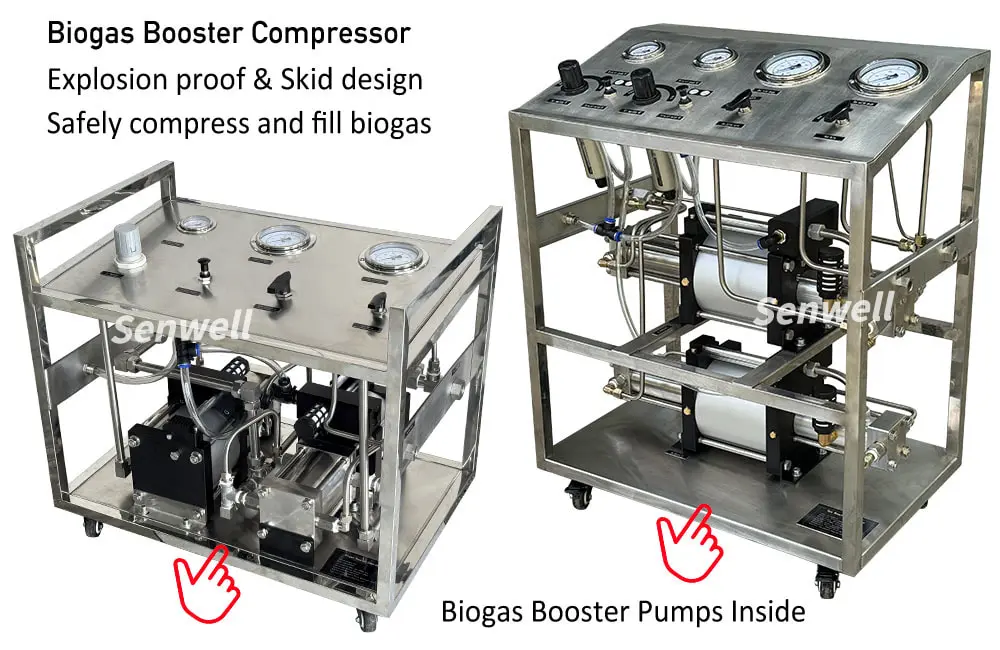

This is a small type fuel gas compressor suitable to serve as a compact biogas compressor or methane compressor. It integrates multiple fuel gas booster pumps, and all pumps work together to output more gas flow to meet your dual demands on pressure and flow. Therefore, It is suitable for large-scale compressing biogas for biogas plant or maintaining pipeline pressure for long-distance transferring biogas.
The biogas booster pump outlet pressure is proportional to the driving air pressure. So if adjust the air supply pressure, the biogas booster discharge pressure will change accordingly.
Yes. Biogas booster has a strong self-priming ability. Even if the gauge pressure of your biogas is zero, it is still able to suction your biogas and boost biogas for you.
Normally, the nominal working pressure of LPG cylinders is 21bar. LPG is filled by weight, but biogas is filled by pressure. Therefore, the maximum filling pressure for filling biogas into LPG cylinders is 21bar.
The nominal working pressure of common used CNG cylinders is 200bar. Biogas is filled according to pressure, so the maximum biogas filling pressure is 200bar if you fill biogas in CNG cylinders.
