Vacuuming gas cylinder before filling new gas is not necessary under normal circumstances, which is essential in special cases such as filling purity gas or flammable gas into cylinder.
The Purpose of Vacuuming Gas Cylinder
Vacuuming gas cylinder can effectively remove residual air, moisture and impurities from inside the cylinder, thus ensuring that the gas filled into the cylinder is purer. Furthermore, it prevents moisture and impurities from corroding the inner wall of the gas cylinder, thus extending its service life. In addition, it can prevent the flammable gas filled into the cylinder from mixing with the residual air in the cylinder, thus preventing potential safety hazards. In summary, vacuuming gas cylinder before filling it with gas is done to ensure the gas purity and the gas cylinder’s safety.
In What Situations Vacuuming Cylinder is Necessary?
1.If your gas is used in the food and beverage industry, or requires applications that demand high-purity gas, it is necessary to vacuum the gas cylinder before filling it with gas.
2. If you need to refill flammable gas, such as oxygen, hydrogen, CNG, LPG, butane, propane, refrigerant, it is also essential to vacuum gas cylinder before filling gas.
3. Before refilling fire extinguisher, such as before filling it with new extinguishing agent like Co2, FM200 or NOVEC 1230, vacuuming fire cylinder is required.
How to Vacuum Gas Cylinder or Fire Extinguisher
To vacuum a gas cylinder or fire extinguisher, you need to connect a vacuum pump and a vacuum pressure gauge onto the cylinder valve. Then, start the vacuum pump and observe the vacuum gauge. When the gauge shows the vacuum level in cylinder between -0.5 bar and -1 bar, stop the vacuum pump. Finally you can fill new gas or new extinguishing agent into the cylinder.

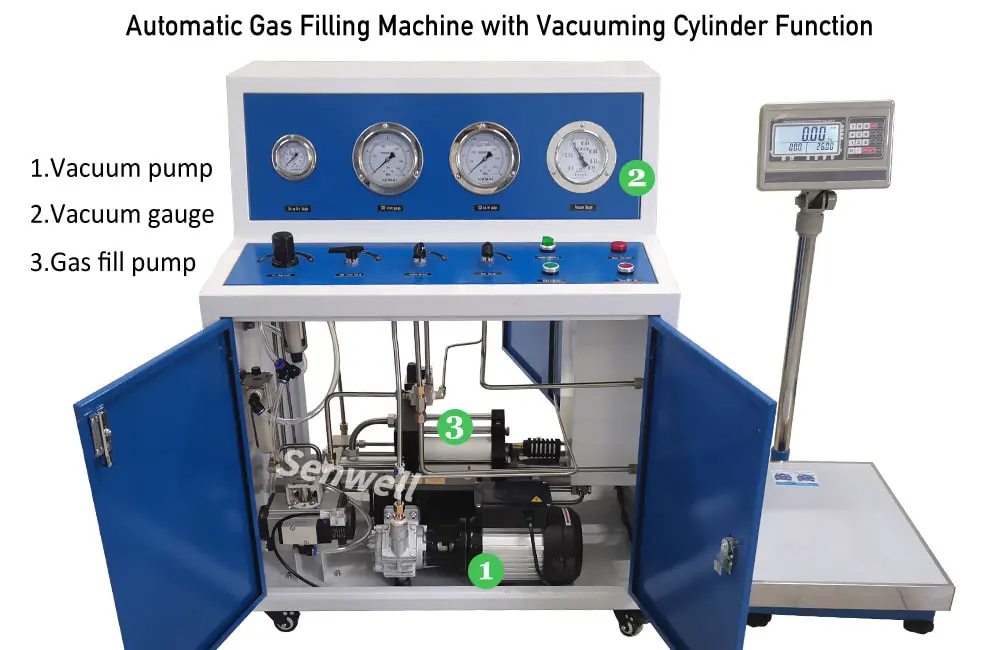

Gas Cylinder Refill Machine with Vacuuming Cylinder Function
To facilitate users filling various gases, we have developed automatic gas filling machine which integrates gas filling pump, vacuum pump, pressure gauges and control kit. With just one button click, you can easily complete vacuuming gas cylinder and filling gas into cylinder. If you need Carbon dioxide filling machine, Oxygen filling machine, Fire extinguisher refilling machine and more, please contact us to ask for brochures.
